- Powertrain A plug-in hybrid version was added.[5]
- Powertrain A separate Tiguan R model was offered for the first time.[5]
- Technology The third-generation modular infotainment matrix (MIB3) was introduced.[5]
- Design The front end was redesigned with a wider grille and LED headlights, and the badge placed centrally.[5]
- Design At the rear, the Tiguan lettering moved to a central position below the badge.[5]
Volkswagen Tiguan · Second generation · production 2016–2024

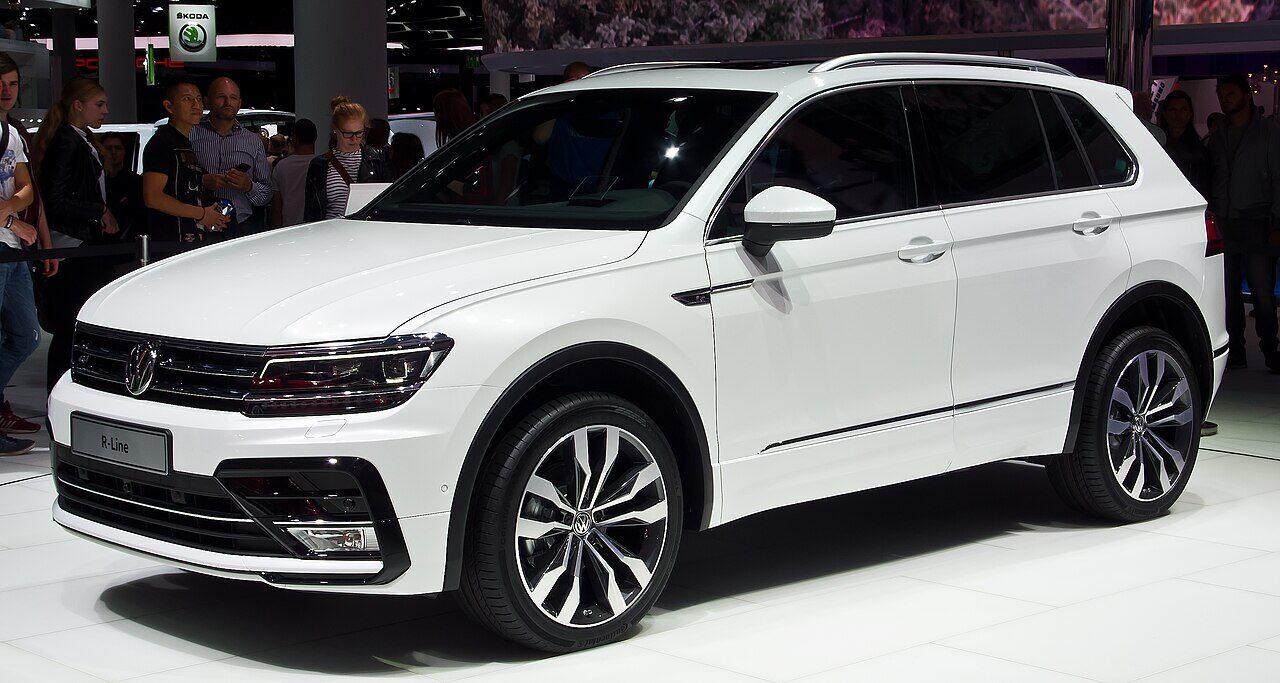

Volkswagen Tiguan (AD1)
Key facts
| Production | 2016[2] – 2024[2] |
|---|---|
| First shown | September 2015, Frankfurt International Motor Show (IAA)[3] |
| Sales start | April 2016 (market not stated)[3] 2017 (United States)[2] January 2017 (China)[2] |
| Model years | 2018–2024 (North America)[2] |
| Codes | AD1 model code[2], BW2 model code (long wheelbase)[2], BJ2 model code (long wheelbase)[2] |
| Names by market | Tiguan (All markets)[2] Tiguan Allspace (Europe)[1] Tiguan (North America)[1] Tiguan L (China)[1] Tiguan X (China)[2] |
| Platform | Volkswagen Group MQB A2[2] |
| Assembly | Wolfsburg, Germany (normal wheelbase)[1] Kaluga, Russia (normal wheelbase)[1] Shanghai (Anting), China (Tiguan L)[1] Puebla, Mexico (long wheelbase)[1] |
| Body styles | 5-door SUV, normal wheelbase — Europe, Russia, Australia, India, Southeast Asia[2] 5-door SUV, long wheelbase (Tiguan Allspace in Europe, Tiguan in North America, Tiguan L in China), optional third row — Europe, North America, Mexico, China[2] 5-door coupé SUV (Tiguan X) — China[2] |
| Seating | Not documented here |
| Drivetrain | Front-wheel drive — Europe[4] All-wheel drive (4MOTION) — Europe[4] Front-wheel drive — United States[2] All-wheel drive (4Motion) — United States[2] |
Photos
What changed from the 5N
- Chassis The Tiguan moved to Volkswagen's Modular Transverse Toolkit (MQB).[1]
- Weight 50 kg lighter than the outgoing Tiguan.[2]
- Dimensions It is 60 mm longer and 30 mm wider, with a wheelbase 77 mm longer.[2]
- Other A long-wheelbase version with up to seven seats was added in 2017, with a wheelbase extended by 110 mm.[1]
Facelifts and updates
- Dimensions A redesigned front lengthened the Tiguan Allspace to 4,723 mm, 22 mm more; interior dimensions are unchanged.[7]
- Technology IQ.LIGHT LED matrix headlights became available on the Tiguan Allspace for the first time.[8]
- Technology IQ.DRIVE Travel Assist was offered in the Tiguan Allspace for the first time.[8]
Dimensions
| Market | Version | Length | Width | Height | Wheelbase | Source |
|---|---|---|---|---|---|---|
| Market not stated | normal (short) wheelbase | — | — | 1,673 mm (65.9 in) | 2,681 mm (105.6 in) | [2] |
| Market not stated | long wheelbase | — | — | — | 2,791 mm (109.9 in) | [2] |
| Europe | Tiguan Allspace, 2021 update | 4,723 mm (185.9 in) | — | — | — | [8] |
| China | Tiguan X | 4,764 mm (187.6 in) | — | 1,628 mm (64.1 in) | 2,791 mm (109.9 in) | [2] |
Figures are as published by the source for that market and version; widths usually exclude mirrors. Conversions in brackets are ours.
Luggage capacity
| Market | Version | Measured behind | Volume | Method | Source |
|---|---|---|---|---|---|
| Europe | Tiguan Allspace, 5 seats | 2nd row | 760 L | not stated | [8] |
| Europe | Tiguan Allspace, 5 seats | 1st row (rear seats folded) | 1,920 L | not stated | [8] |
The source does not say how the volume was measured. Volumes measured by different methods are not comparable.
Powertrains
| Version | Market | Type | Engine / motor | Power | Torque | Transmission | Drive | Years | Source |
|---|---|---|---|---|---|---|---|---|---|
| 1.4 TSI 125 | Europe | Petrol | 1.4 L inline-4 turbo petrol (EA211) | 125 PS (92 kW) | 200 Nm (148 lb-ft) | 6-speed manual | — | 2016–2018 | [2] |
| 1.5 TSI 150 | Europe | Petrol | 1.5 L inline-4 turbo petrol | 150 PS (110 kW) | 250 Nm (184 lb-ft) | 6-speed manual or 7-speed DSG | — | 2018– | [2] |
| 2.0 TSI 180 4Motion | Europe | Petrol | 2.0 L inline-4 turbo petrol (EA888) | 180 PS (132 kW) | 320 Nm (236 lb-ft) | 7-speed DSG | AWD | 2016–2018 | [2] |
| 2.0 TSI 220 4Motion | Europe | Petrol | 2.0 L inline-4 turbo petrol | 220 PS (162 kW) | 350 Nm (258 lb-ft) | 7-speed DSG | AWD | 2016–2018 | [2] |
| 1.6 TDI 115 | Europe | Diesel | 1.6 L inline-4 turbo-diesel (EA288) | 115 PS (85 kW) | 320 Nm (236 lb-ft) | 6-speed manual | — | 2016–2020 | [2] |
| 2.0 TDI 150 | Europe | Diesel | 2.0 L inline-4 turbo-diesel | 150 PS (110 kW) | 340 Nm (251 lb-ft) | 6-speed manual or 7-speed DSG | — | 2016–2024 | [2] |
| 2.0 TDI 240 4Motion | Europe | Diesel | 2.0 L inline-4 turbo-diesel | 240 PS (177 kW) | 500 Nm (369 lb-ft) | 7-speed DSG | AWD | 2016–2020 | [2] |
| Tiguan R | Europe | Petrol | 2.0 L TSI (EA888 evo4) | 235 kW (320 PS) | 420 Nm (310 lb-ft) | 7-speed DSG (DQ500) | AWD | 2020– | [3] |
| Tiguan Allspace 2.0 TDI 200 | Europe | Diesel | 2.0 L TDI | 147 kW (200 PS) | — | — | — | 2021– | [4] |
| Tiguan Allspace 2.0 TSI 245 4MOTION | Europe | Petrol | 2.0 L TSI | 180 kW (245 PS) | — | 7-speed DSG | AWD | 2021– | [4] |
| 2.0 TSI | North America | Petrol | 2.0 L inline-4 turbo petrol (EA888) | 184 hp (137 kW) | 300 Nm (221 lb-ft) | 8-speed automatic | — | — | [2] |
| Tiguan L 430 PHEV | China | Plug-in hybrid | 1.4 L TSI (EA211) plug-in hybrid | 211 PS (155 kW) | 400 Nm (295 lb-ft) | 6-speed DSG (DQ400e) | — | — | [2] |
| 1.4 eHybrid | Market not stated | Plug-in hybrid | 1.4 L TSI plug-in hybrid | 180 kW (245 PS) | — | — | — | 2020– | [6] |
Power is shown in the unit the source uses first (kW, metric PS or SAE hp), with our conversion in brackets. A blank cell means the source does not state it.
Notes
- Market distinction: in Europe the long-wheelbase version (codes BW2/BJ2 per Wikipedia) is sold as the Tiguan Allspace beside the normal-wheelbase Tiguan; in North America only the long-wheelbase body was offered and it was called simply 'Tiguan'; in China it was the Tiguan L (built by SAIC-VW), with the Tiguan X coupé SUV derived from it.
- Wikipedia also lists a model code 'AX1' next to AD1 without explaining it; it is not recorded here.
- Volkswagen states the long-wheelbase version has a wheelbase 110 mm longer; Wikipedia gives 109 mm (2,681 vs 2,791 mm).
- Sales start: Volkswagen gives April 2016 for the sales launch; German Wikipedia gives January 2016 for the start of sales of the second generation. The manufacturer date is recorded.
- Production: Wikipedia gives 2016–2024 for the generation overall; the Chinese Tiguan L continued after that and the Tiguan X was built 2020–2026.
- The North American model was updated for the 2022 model year (Wikipedia).
- The 2020 facelift of the normal-wheelbase model and the 2021 update of the Tiguan Allspace are recorded as separate revisions; German Wikipedia notes the Allspace kept the old design until 2021.
- Long wheelbase: German Wikipedia says the Tiguan Allspace was first shown at the Detroit show in January 2017 and the European version at Geneva in March 2017, with sales in North America from summer 2017 and in Europe from September 2017; the Chinese Tiguan L was on sale from 18 January 2017.
Sources
- Tiguan: Global bestseller breaks the six million mark and has been the best-selling Volkswagen in 2019 — Volkswagen Newsroom, 17 April 2020 Manufacturer (read 9 October 2026)
- Volkswagen Tiguan — Wikipedia Reference work (read 9 October 2026)
- Powerful 320 PS performance version of the successful SUV: new Tiguan R now available to order — Volkswagen Newsroom, 25 November 2020 Manufacturer (read 9 October 2026)
- New Tiguan Allspace now available from dealerships — Volkswagen Newsroom, 11 November 2021 Manufacturer (read 9 October 2026)
- Electrified and energised: world premiere of the new Tiguan — Volkswagen Newsroom, 1 July 2020 Manufacturer (read 9 October 2026)
- VW Tiguan II — Wikipedia (de) Reference work (read 9 October 2026)
- The new Tiguan Allspace available to order now — Volkswagen Newsroom, 27 May 2021 Manufacturer (read 9 October 2026)
- The new Tiguan Allspace: new control and assist systems for the bestseller — Volkswagen Newsroom, 12 May 2021 Manufacturer (read 9 October 2026)
Wikipedia sources link to the exact revision that was read. Specifications differ between markets, years and versions; each figure is shown with the market and version its source states.
